Remote Keypad
For consumer products development, we provide remote IR keypad module:
IR only and IR with keyboard.
User can use consumer controller with 38KHz IR to send keyboard message.
It also can wake up your product if ATX power is installed.
For programmer, it is standard keyboard press message and no more extra operation is needed.
IR module is easy to use and save a lot of development time.
We also use this module on our consumer product -
VDR.
User can use IR controller or keypad of VDR to copy, record and play VCD.
We also provide IR controller, mail to
info@icop.com.tw to get more detail.
IR Module
IR module can receive 38KHz with ID code 087FH message.
See ir_only.pdf
and the code map is:
| 2DH |
R |
3AH |
M |
34H |
G |
1CH |
A |
| 1BH |
S |
31H |
N |
33H |
H |
32H |
B |
| 2CH |
T |
44H |
O |
43H |
I |
21H |
C |
| 3CH |
U |
4DH |
P |
3BH |
J |
23H |
D |
| 2AH |
V |
15H |
Q |
42H |
K |
24H |
E |
| 1DH |
W |
0DH |
TAB |
4BH |
L |
2BH |
F |
IR with Keypad Module
For keypad of IR module,
see ir_24.pdf
and the key map of key array is:
|
RB4 |
RB3 |
RB1 |
RB0 |
| RA2 |
r |
m |
g |
a |
| RA3 |
s |
n |
h |
b |
| RA4 |
t |
o |
i |
c |
| RA5 |
u |
p |
j |
d |
| RA6 |
v |
q |
k |
e |
| RA7 |
w |
TAB |
l |
f |
Application

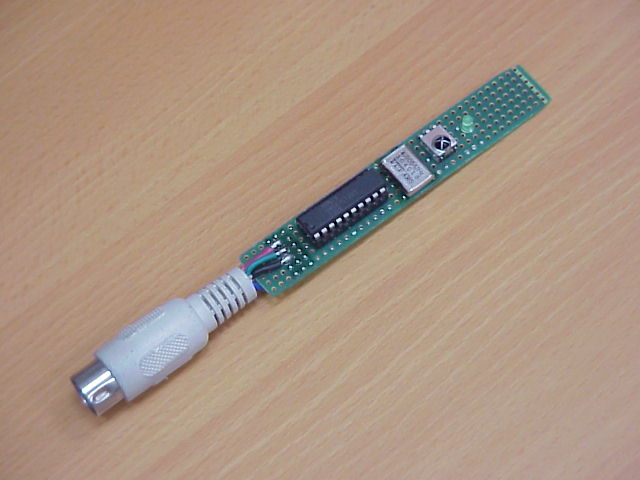

| It's our IR only prototype: |

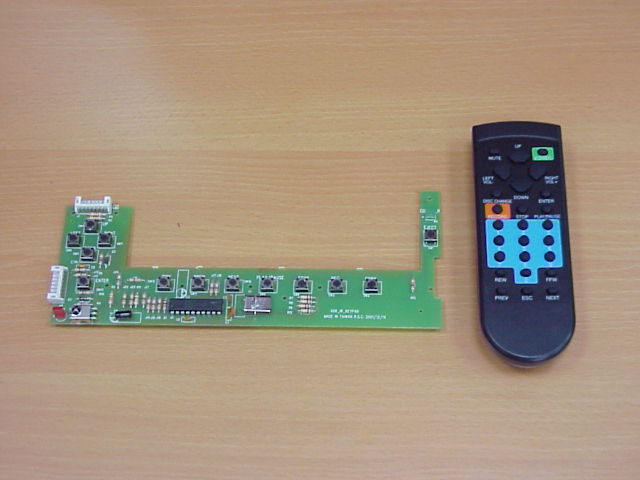

We also use remote keypad on our VDR. |
 |
 |
