| Chipset |

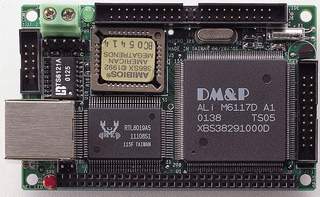

DM&P M6117D
Embedded CPU 386SX-36MHz
Data Bus: 16-bit
Bus Speeds: 8MHz, programmable up to 16MHz
Watchdog Timer: 30.5us to 512 seconds
Real Time Clock with Lithium battery backup |
| BIOS |
AMI BIOS |
| RAM |
2/4 MB on board |
| On board Ethernet |
Realtek 8019AS single chip
Full-duplex transfer mode, doubles effective bandwidth
NE2000 compatible with build-in 16KB RAM buffer Throughput: 10 Mbps |
| I/O |
One RS232 port
One 44-pin Enhanced IDE interface
16-bit GPIO
Power LED
Active LED
|
| OS |
With DOS pre-installed |
| SSD |
Support built-in flash disk up to 350KB
Support MicroDisk Module through IDE interface from 4MB up to 256MB
|
| Connector |
20-pin (2.0mm) box header for 16-bit GPIO
10-pin (2.0mm) box header for RS232 port
5-pin header for AT-keyboard
2-pin MOLEX power connector
2-pin connector for speaker
RJ-45 connector for 10 BASE-T
|
| Expansions |
Specific ISA bus signal interface |
| Power Requirements |
Single voltage +5 V @ 400 mA |
| Operating Temperature |
-20~+60 operation temperature |
| Dimensions |
80 mm (L) X 50 mm (W) |
| Ordering Info |
Mity-Mite Module |
|
| Chipset |

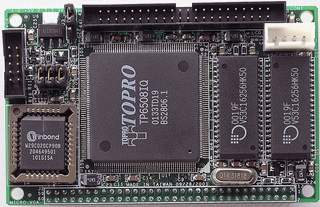

TOPRO TP65081Q Chip
16-bit ISA bus
Panel data bus: 24-bit
Display: CRT and Flat Panel
Mono/TFT/DSTN/LCD |
| Video Memory |
512 KB on board, resolution up to 640X480 @ 256 colors (optional 1MB on
board, resolution up to 1024X768 @ 256 colors) |
| VGA BIOS Socket |
VGA BIOS Socket X 1 |
| Display Connector |
10-pin (2.0mm) box header VGA connector
44-pin (2.0mm) box header for LCD connector
4-pin (2.0mm) power connector for +5V/+12V |
| Expansions |
Specific ISA bus signal interface |
| Power Requirements |
Single voltage +5 V @ 200 mA |
| Operating Temperature |
-20~+60 operation temperature |
| Dimensions |
80 mm (L) X 50 mm (W) |
| Ordering Info |
Mity-Mite VGA/LCD Development Kit |
|
