Mity-Mite Module is a PC-based specification bundled with BIOS, OS, and software into a single chip. We provide a Mity-Mite Module Demo Box to show text from browser, send/receive mail and accept FTP download/upload. The main program is from start-up project of DSock examples and use MakeROM to make ROM image.

You can download source code to know demo box how to initialize GPIO, drive graphic LCM and use DSock to build Internet application.

View Specifications of Mity-Mite Module.
View pictures of Mity-Mite Module Demo Box.
View Demo Box Usage to know how to use demo box it.


Mity-Mite Module Demo Box

Free Source Code Download

We provide a new Mity-Mite based application - LT200. LT200 is a LAN terminal that can receive commands from TCP/IP. User can use LT200 to control input and output relays. Because of TCP/IP protocol used, user can control it every where from world. We also public our firmware source code for user to learn how to use DM&P libraries to develop real application....

Go to http://www.dmp.com.tw/app/lt200 to get more detail.

 Demo Box Hardware

Demo Box is based on DM&P Mity-Mite Module. It use GPIO bit 0-11 to drive 122 X 32 graphic LCM, bit 12 to light LED when mail received and bit 13-15 to read key press.

Download:
 Mity-Mite Module Circuit Diagram 1/5 (22 KB)
 Mity-Mite Module Circuit Diagram 2/5 (10 KB)
 Mity-Mite Module Circuit Diagram 3/5 (24 KB)
 Mity-Mite Module Circuit Diagram 4/5 (15 KB)
 Mity-Mite Module Circuit Diagram 5/5 (16 KB)
 LCM, LED and Switch with GPIO (10 KB)
 122 X 32 Graphic LCM Specification (745 KB)

 Demo Program with DSock

The demo program of demo box is based on start-up project of DSock examples. It supports FTP/HTTP/SMTP services already. We add LCM display function with our graphic LCM library and initialize GPIO to read key press.

Download:
Demo Program Source Code mmm_src.zip (60 KB)

 Make ROM Image

MakeROM is a DOS utility for programmer to build flash ROM image for Mity-Mite Module. It supports SST-SF040(512KB) flash ROM now. User can fit their applications, BIOS and X-DOS into one flash ROM. There are 448 KB (512KB-64KB BIOS= 448KB) for user's DOS and application. View usage document to get more detail.

Download:
Make ROM Image Utility - MakeROM (160 KB)

 Mity-Mite Serial Server

It is a light version of RSIP which only support Host-Based/RS232_TXRX_DTE mode. User can connect RS-232 device to COM1 of Mity-Mite Serial Server and use TCP/IP over Internet to access this device. Because of the same kernel of RSIP, you can use RSIP setup program to setup Mity-Mite Serial Server. It is a light version of RSIP that only support host-based mode, RS232_TXRX_DTE mode of RSIP. You can refer to Visual C++ example code of RSIP Host-Based Mode to understand how to access Mity-Mite Serial Server.

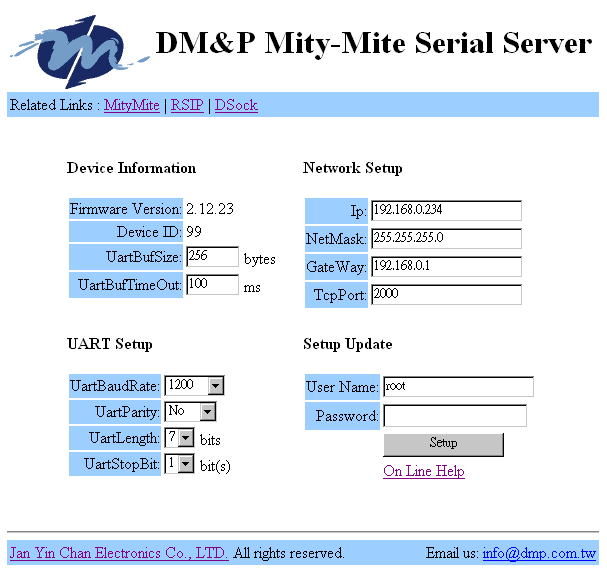

Firmware of Mity-Mite Serial Server is from RSIP and the major version number "1" is replaced with "2".(RSIP 1.12.23 -> Mity-Mite Serial Server 2.12.23) View the web setup page of Mity-Mite Serial Server. Go to RSIP home page to download user manual and setup program.

Download:
Mity-Mite Serial Server Auto-Update Program for Windows 2.12.23 (194 KB) for Mity-Mite Demo Box.

 LCM DOS Library

We provide a lot of embedded CPU modules. Besides, we provide graphics LCM. Release graphic LCM library in order to reduce develop time for our user. The library is for M6117D CPU only.

Go to Graphic DOS LCM Library to get more information.

 Technical Support

If you have any problem about Mity-Mite Demo Box, feel free to mail to tech@dmp.com.tw please.
