Getting Started

Initial Program for Windows

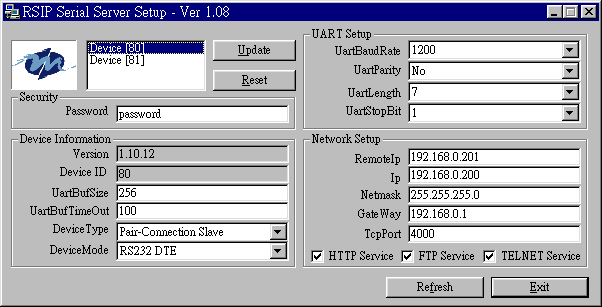

RSIPIW.exe is a Windows initial program and you can use it to initialize RSIP easily. It's the screen when RSIPIW.exe is running:

Options:

Security
Password Set password
Device Information
Version Firmware version.
DeviceID Unique ID for each device.
UartBufSize Device will send data out when buffer is full.
UartBufTimeOut Device will send out data every [UartBufTimeOut] ms.
DeviceType Host-Based/Pair-Connection Master/Pair-Connection Slave
DeviceMode More Help
UART Setup
UartBaudRate 50/75/110/300/1200/2400/4800/9600/14400/19200/38400/57600/119200 bps
UartParity No/Odd/Even/Mark/Space
UartLength 5/6/7/8 bits
UartStopBit 1/2 bit(s)
Network Setup
Remote IP Remote IP for pair-connection mode.
IP Internet IP for device.
NetMask Internet NetMask for device.
GateWay Internet GateWay for device.
TcpPort Devices have the same port will connect automaticlly.
HTTP/FTP/TELNET Service Enable/Disable services.

When options are selected ok, press "Update" to button to update RSIP setting. Press "Reset" button after RSIP is updated to enforce RSIP to reset to load new setup.

Initial Program for Console Mode

If you want to change the default value of RSIP, you can run RSIPIC.exe to initialize it. RSIPIC is a Win32 console mode program and provides a command shell. You can type "HELP" to get more command set while RSIPIC is running.

Standard Initial Flow

  1. Run RSIPIC.EXE

  2. Type "FIND" to find devices exist and you will get a device list.
    >find
Finding devices...
Device [22] found
Device [23] found
Device [91] found
Time out
>
  3. Type "GETSETUP" with the device ID got by "FIND" to get device setup.
    >getsetup 91
OK
>
  4. Type "DUMPSETUP" to view setup of device.
    >dumpsetup
Version        : 1.02.05
DeviceID       : 91
DeviceType     : Host-Based
DeviceMode     : RS232 DCE
Password       : password
IsLinked       : FALSE
HttpService    : TURE
FtpService     : TURE
TelnetService  : TURE
UartBufSize    : 256
UartBufTimeOut : 100
UartBaudRate   : 1200
UartParity     : No
UartLength     : 7
UartStopBit    : 1
RemoteIp       : 192.168.0.201
Ip             : 192.168.0.200
NetMask        : 255.255.255.0
GateWay        : 192.168.0.1
TcpPort        : 4000
>
  5. Using data setup command set to set data.

  6. Type "UPDATE" to write setup back to device.
    >update 91
OK
>
  7. Type "RESET" to reset device and RSIP will load new setup.

  8. You can type "HELP" to get command set:
    >help
Exit               Terminate program
Ver                Show version
Find               Find devices
GetSetup           Get setup from device
DumpSetup          Dump setup of buffer
Update             Send setup to remote device
Reset              Reset remote device
--- Commands for Setup Data ---
DeviceType         Set device type
DeviceMode         Set device mode
Passwd             Set password
UartBufSize        Set buffer for UART in bytes
UartBufTimeOut     Set time out for UART buffer in ms
UartBaudRate       Set UART baud rate
UartParity         Set UART parity
UartLength         Set UART data length
UartStopBit        Set UART stop bit
RemoteIp           Set remote IP for pair-connection mode
Ip/NetMask/GateWay Set device IP/netmask/gateway
TcpPort            Set TCP port
Http/Ftp/Telnet    Set HTTP/FTP/TELNET service enable/disable
>
