Overview

Solution for RS-232/422/485 to TCP/IP

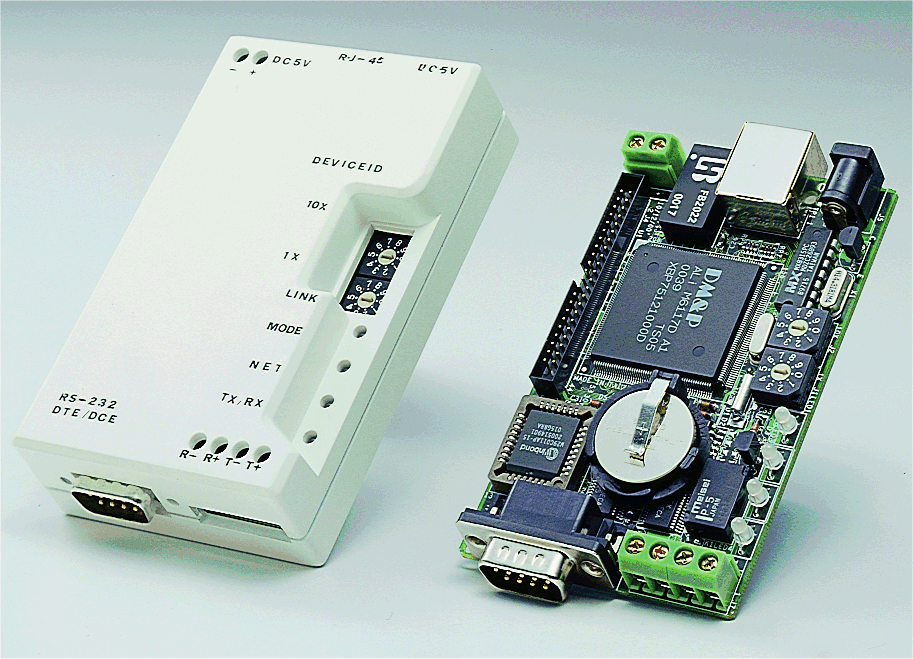

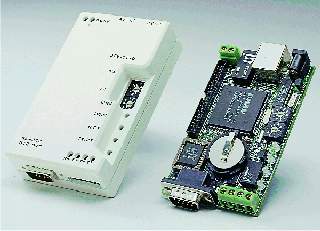

RSIP serial server is designed to connect a serial device, RS-232 or 422 or 485, to your network which can convert protocol between PC and serial port device. This solution allows a remote PC or Terminal to monitor, configure, manage and send or receive data to/from the serial port device via the LAN. There no need of software modification when the RSIP function is required. RSIP Serial Server also supports auto-recovery and auto-connection. Which "Client" RSIP will auto-connect to "Server" RSIP without any instruction. Whenever the communication problems occur, RSIP will automatically diagnose the network status and reset to initial state.

Feature

• Standard 10 BASE-T Ethernet support
• Serial port transmission speed up to 115.2 Kbps

Specifications

• Controller:
  DMP M6117D (386SX-40MHz) CPU with 2MB RAM on board

  Protocol:

  TCP, UDP, IP, ICMP, TELNET, HTTP, FTP, SMTP

  Network Port:

  10 BASE-T IEEE 802.3

  RJ-45 connector

  Serial Port:

  • Connector:
    DTE

    Transmission Speed:

    50 bps to 115.2 Kbps

    Format:

    Parity Bit: odd/even/mark

    Data Bit: 5,6,7,8 bits

    Stop Bit: 1,2 bit(s)

  LEDs

  LINK

  MODE

  NET

  TX/RX

  Power Requirements:

  ?

  Power consumption:

  ?

  Operating Temperature

  ?

LED Definition
