 Solution for RS-232/422/485 to TCP/IP

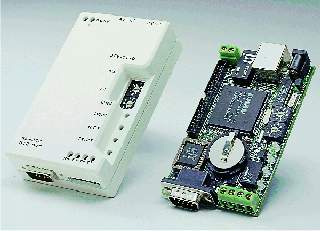

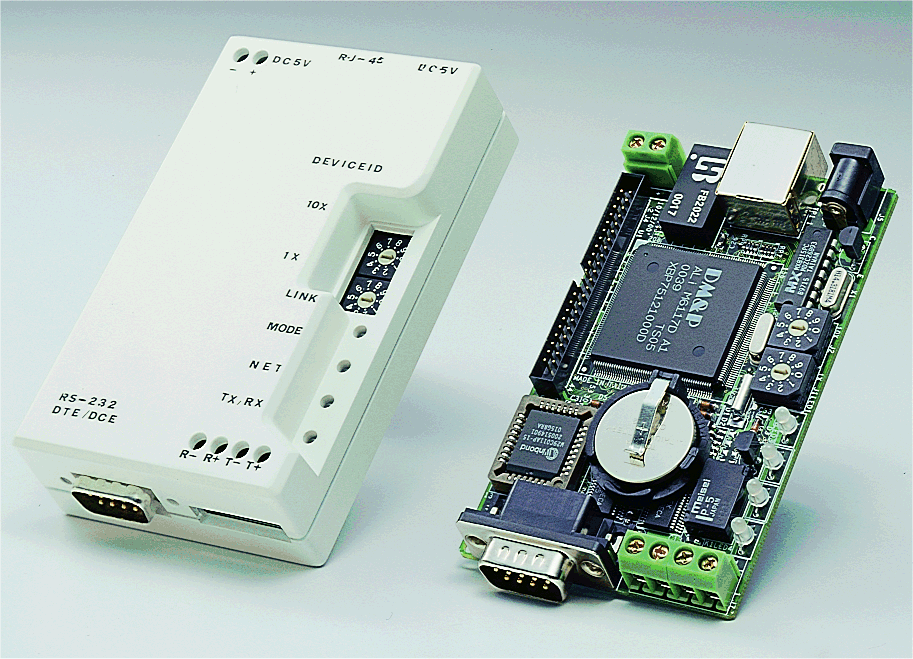

RSIP serial server is designed to connect a serial device, RS-232 or 422 or 485, to your network, which can convert protocol between PC and serial port device. This solution allows a remote PC or Terminal to monitor, configure, manage and send or receive data to/from the serial port device via the LAN. There no need of software modification when the RSIP function is required. RSIP Serial Server also supports auto-recovery and auto-connection. Which "Client" RSIP will auto-connect to "Server" RSIP without any instruction. Whenever the communication problems occur, RSIP will automatically diagnose the network status and reset to initial state.

Also see: Mity-Mite Serial Server

 Specifications

Controller:
  • DMP M6117D (386SX-40MHz) CPU
  • 2MB RAM on board

    Protocol:

  • IP
  • ICMP
  • ARP
  • TCP/UDP
  • TELNET
  • FTP
  • HTTP
  • SMTP

    Configuration:

  • Setup program
  • HTTP web page
  • TELNET
  • LEDs
  • LINK
  • MODE
  • NET
  • TX/RX

    Network Port:

  • 10 BASE-T IEEE 802.3
  • RJ-45 connector

    Serial Port:

  • Connector: DTE
  • Transmission Speed: 50 bps to 115.2 Kbps
  • Format:
    Parity Bit: odd/even/mark Data Bit: 5,6,7,8 bits Stop Bit: 1,2 bit(s)
  •  Download

    DOS TCP/IP library used by RSIP is DM&P DSock: http://www.dmp.com.tw/dsock.

     Mity-Mite Serial Server

    It is a light version of RSIP which only support Host-Based/RS232_TXRX_DTE mode. Because of the same kernel of RSIP, you can use RSIP setup program to setup Mity-Mite Serial Server. It is a light version of RSIP that only support host-based mode, RS232_TXRX_DTE mode of RSIP.

    Go to Mity-Mite Module home page to get more information.
